Working under a car at home is where garage lighting is really tested. You can have a bright ceiling and still find yourself squinting into a black underbody, chasing a shadow across a subframe, or getting dazzled by a light that sits right in your eyeline. This guide gives Australian home mechanics the real numbers and a practical setup that solves all three problems at once: pitch black underbody, harsh shadows and glare from below.
The real problem with lighting under a car
The car itself is the obstacle. Even a well lit garage throws its light onto the top of the vehicle, and the body then blocks that light from ever reaching the sump, subframe, exhaust and floor pan. So you get three linked problems.
- A pitch black underbody. Overhead light cannot bend around sheet metal, so the area you actually work in stays dark.
- Harsh shadows. A single light source casts a hard shadow of your own hands and tools exactly where you are trying to see.
- Glare and dazzle. When a light sits below your eyeline, which is normal when you are on your back on a creeper, it shines straight into your eyes and destroys your night vision for the detail work.
Fixing under car lighting is not about one giant light. It is about the right brightness, the right colour, and light coming from more than one angle so nothing is left in shadow and nothing blinds you.
How bright should under car lighting be
For close mechanical work you want plenty of light on the surface, not just a lot of lumens floating around the room. As a rough guide for a home mechanic:
- Task light output: a portable under car light of around 1000 to 3000 lumens covers most jobs, from spanner work to inspecting a leak.
- Target brightness on the surface: aim for roughly 500 to 1000 lux on the area you are working, which is closer to a professional workshop than a domestic room. Detailed diagnosis, fine electrical work and paint inspection sit at the higher end.
- Overhead base layer: a general garage ceiling in the range of 300 to 500 lux gives you a bright, even base so your task light only has to fill in the shadows.
The trick that experienced mechanics use is a higher quantity of moderate lights rather than one blinding source. Several evenly spread lights flatten shadows far better than a single spotlight, and they are much easier on your eyes.
Colour temperature and CRI: seeing leaks, rust and wiring
Brightness is only half the story. The colour of the light decides whether you can actually tell an oil weep from a coolant weep, or fresh surface rust from old grime.
Colour temperature. For under car work choose a cool, daylight white in the range of 5000K to 6500K. Daylight white renders fluids, corrosion and cable colours accurately and keeps you alert, whereas a warm yellow light hides detail and makes everything look the same shade of brown.
CRI (Colour Rendering Index). This measures how truly a light shows colour compared to daylight, on a scale to 100. Aim for CRI 80 or higher, and ideally 90 or higher for diagnosis. High CRI is what lets you distinguish green coolant, red transmission fluid, dark engine oil and the orange tint of early rust. Cheap lights often skip this spec, which is exactly why colours look washed out under them.
Flood, spot or area lighting
Beam shape matters as much as raw output. Each type has a place under a car.
- Flood beam: a wide, soft spread that lights a large area with gentle shadows. Best as your main under car task light.
- Spot beam: a narrow, intense beam for peering into a tight cavity, a gearbox bellhousing or a rusty seam. Useful as a second, aimable light, but too harsh on its own.
- Area or panel lighting: broad, even, glare controlled light from above, ideal for the fixed overhead layer that removes shadows before you even pick up a torch.
The best result comes from combining them: a wide flood down at your work, plus a bright even area light overhead.
Comparison of under car light types
| Light type | Best for | Strengths | Limitations | Rough AUD |
|---|---|---|---|---|
| Head torch | Hands free peeking into cavities | Light follows your gaze, cheap, portable | Single angle, casts shadow where you look, low output | $30 to $90 |
| Magnetic rechargeable bar | Sticking to the subframe or panel | Sits close to the work, even flood, repositionable | Needs a steel surface, runtime limited | $40 to $150 |
| Underbody or creeper light | Working flat on your back | Aims up into the underbody, wide spread | Can sit in your eyeline and cause glare | $50 to $200 |
| Tripod area light | Filling shadow from the side | High output, adjustable height and angle | Takes floor space, can dazzle if aimed poorly | $120 to $400 |
| Fixed overhead LED panels | Permanent shadow free base layer | Even coverage, no setup, frees your hands | Needs mounting, best paired with a task light | $150 and up per zone |
Most home mechanics end up with two or three of these: a strong overhead base plus one or two portable task lights they can move around the job.
Match the lighting to your setup
How the car is raised changes where the darkness falls.
- Flat on the ground: access is tight, so a slim magnetic bar or a low profile creeper light that slides under with you works best. Keep the light off to the side of your face to avoid glare.
- On ramps: you get a clear line up into the front underbody. A tripod flood aimed up and in from the front, plus a magnetic bar on the subframe, gives clean, shadow free light.
- On jack stands: more height means more room for two lights from opposite sides, which cancels shadows. Only ever work under a vehicle supported on correctly rated stands, never a jack alone.
- On a two post lift: the car is at eye height, so overhead panels do most of the work. Add one aimable spot for cavities.
- Over an inspection pit: mount sealed, IP rated lights along the pit walls at an angle so they light the underbody without shining into your eyes, and keep the base bright with overhead panels.
How to kill shadows and glare together
Two principles solve almost every under car lighting complaint.
Light from more than one angle. A single source always leaves a shadow. Two lights from different directions, or one overhead plus one portable, fill each other's shadows so your hands and tools stop blocking the view. This is the single biggest upgrade you can make.
Keep sources out of your sightline. Glare comes from staring straight at a bright light. Position portable lights to the side or above the plane of your eyes, aim them at the work rather than at your face, and choose lights with a diffused lens or a shielded housing. A bright, even overhead layer also means your portable light can be dimmer, which cuts dazzle even further. Our technical lighting articles go deeper on beam angles and glare control if you want the finer detail.
Fixed overhead versus portable lighting
Portable task lights are essential for getting light into cavities, but they should not be your whole plan. If you regularly work on cars, a permanent overhead layer transforms the space. Even, glare controlled ceiling lighting removes the base shadows before you start, so your portable light only has to do the fine detail.

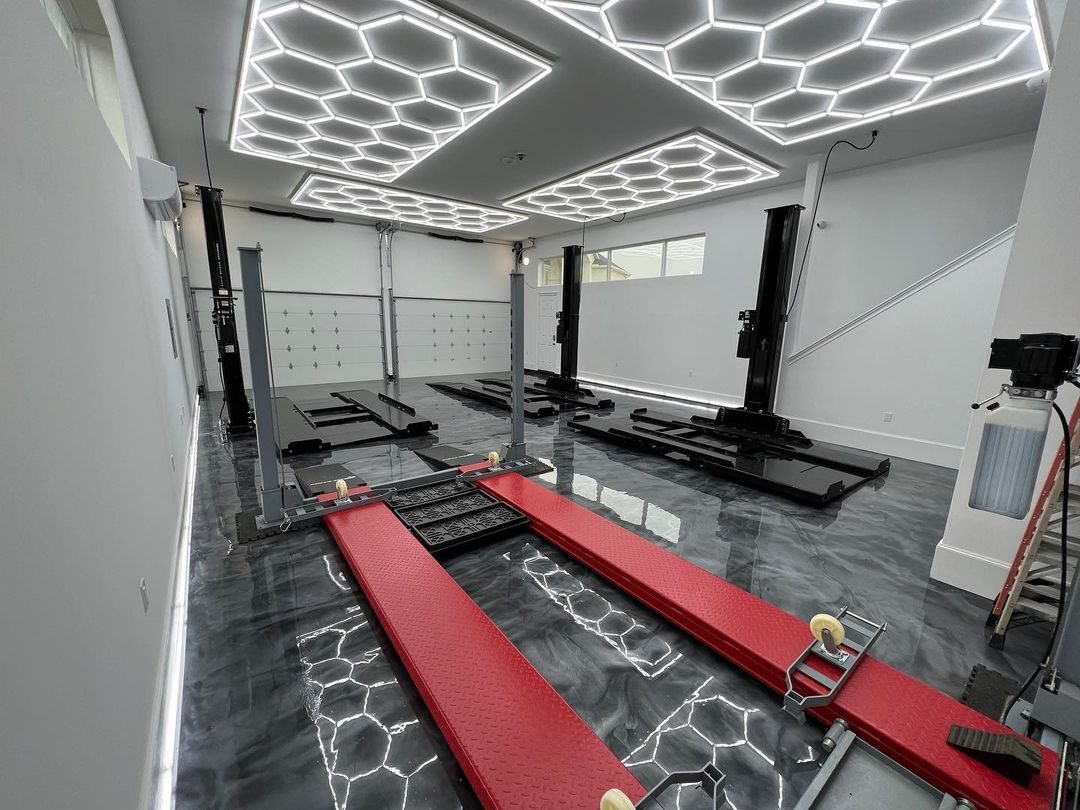

This is where hexagon LED ceiling panels earn their place in a home workshop. The linked hexagon shape spreads light across a wide, even field with fewer dark patches than a couple of isolated fittings, which is exactly what you want when a car body is trying to block the light. They run on a standard wall switch, are plug and play to add to over time, and give you daylight white output at high CRI across the whole bay. Browse the hexagon LED lighting range for panel layouts, or see the full garage lighting collection and dedicated workshop lighting for options sized to your space.
Australian safety essentials
Lighting a car job in an Australian garage or shed brings a few non negotiables.
- RCD protection. Run any 240V light or lead through a residual current device. It is your first line of protection in a damp or oily garage.
- Correctly rated leads. Use a heavy duty extension lead in good condition, keep it clear of fluids and hot exhausts, and never run a damaged lead.
- IP rating. Garages are dusty and sometimes damp, and underbody work means oil and moisture. Choose portable lights rated at least IP54 for dust and splash resistance, and higher for pit or wet floor use. Match the rating to the conditions rather than assuming any light will cope.
- Rated vehicle support. Only work under a car held on rated jack stands or a proper lift on a solid, level floor. A trolley jack is for lifting, not for holding.
- Heat and vapour awareness. Keep lights away from hot components, and remember fuel vapour is flammable. Sealed LED fittings run cool and are far safer around a workshop than old halogen work lamps.
A simple setup that works
For most home mechanics the winning combination is: bright, even overhead LED panels for the base layer, one wide flood portable for the main task light, and a small magnetic bar or head torch for cavities. That covers brightness, colour accuracy, shadow control and glare in one affordable, expandable system you can build up over time.
Frequently asked questions
How many lumens do I need to work under a car?
A portable under car task light of around 1000 to 3000 lumens suits most jobs, aiming for roughly 500 to 1000 lux on the surface you are working. Pair it with a bright, even overhead layer so you are filling shadows rather than fighting total darkness.
What colour temperature is best for under car work?
Choose a cool daylight white in the 5000K to 6500K range. It renders fluids, corrosion and wiring colours accurately, which makes leaks and early rust much easier to spot than under a warm yellow light.
Is a head torch enough on its own?
Not for serious work. A head torch is handy because the light follows your gaze, but it comes from a single angle and casts a shadow exactly where you are looking. Use it as a second light alongside an overhead layer or a flood, not as your only source.
What IP rating should a garage light have?
For portable lights in a dusty, occasionally damp garage, look for at least IP54 for dust and splash resistance. Choose a higher rating for inspection pits, wet floors or anywhere the light may cop direct moisture or heavy oil mist.
How do I stop the light dazzling me when I am under the car?
Keep the light source out of your direct sightline. Position portable lights to the side or above your eyes, aim them at the work rather than your face, and use diffused or shielded fittings. A bright even overhead layer lets you run the portable light dimmer, which cuts glare further.
